X12DPT-PT6 (للخادم الفائق فقط)
For Pricing, Contact Us
IT Infrastructure Consultation Services
For Pricing, Contact Us

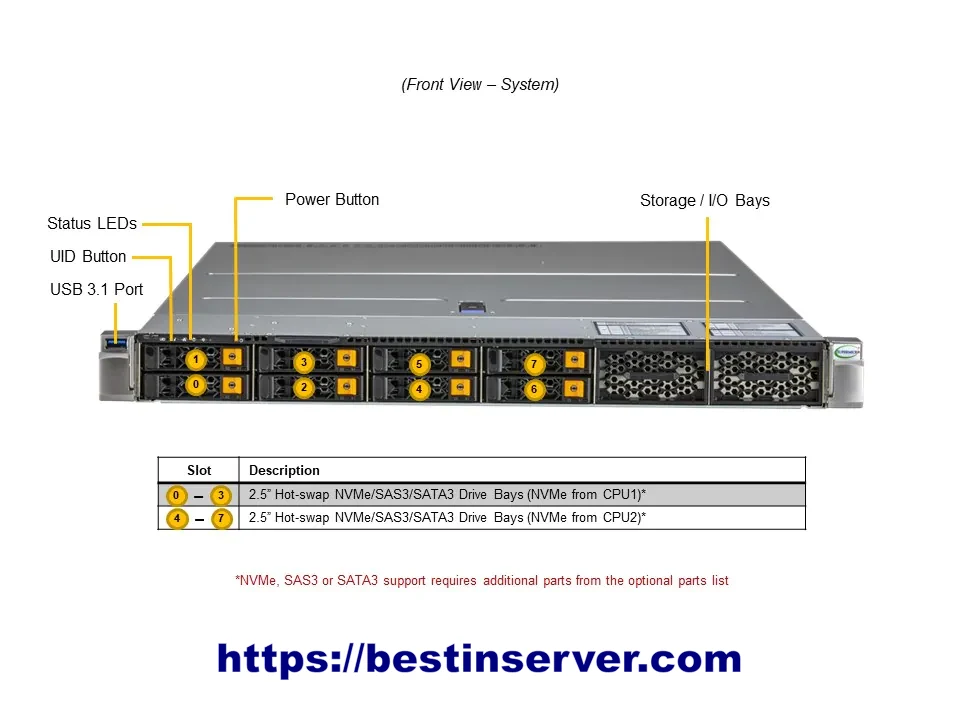

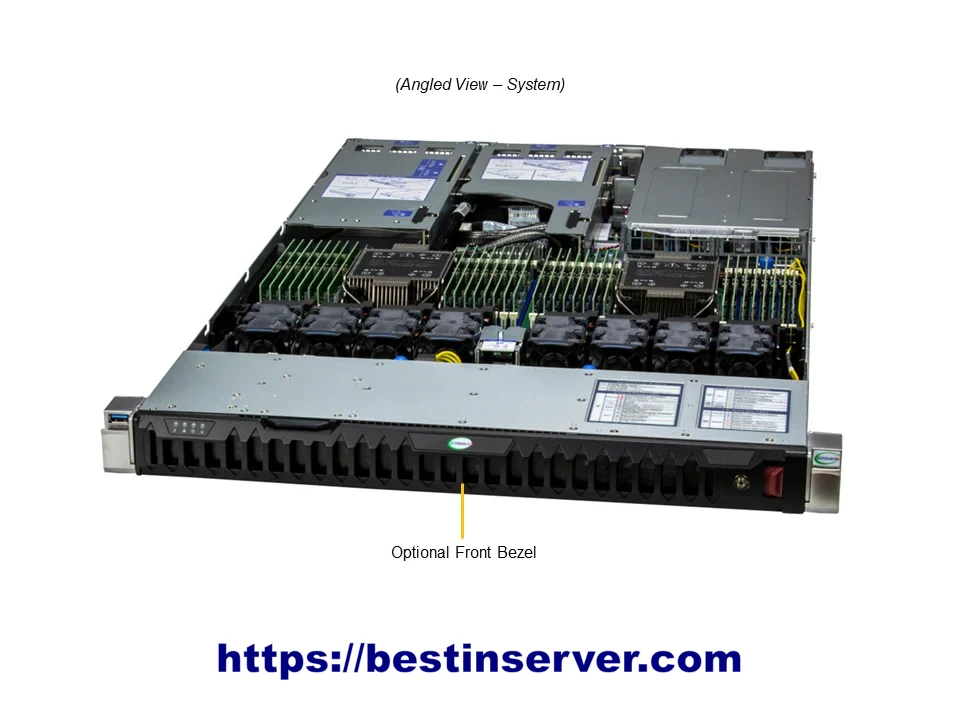

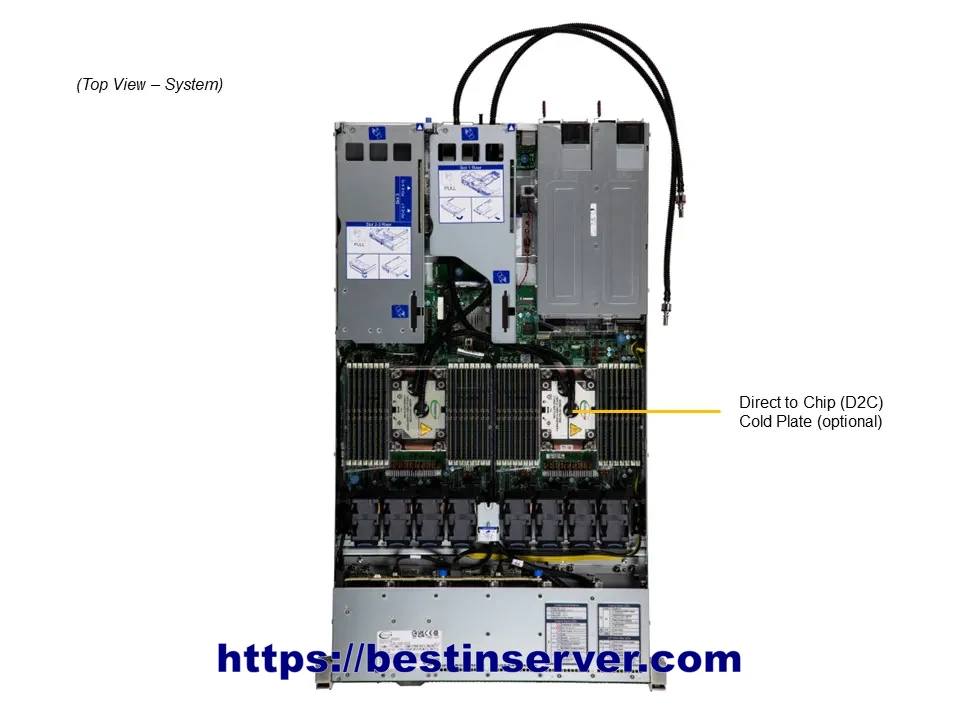

Hyper SuperServer SYS-121H-TNR (Complete System)
Key Applications
- Virtualization
- Software-defined Storage
- AI Inference and Machine Learning
- Cloud Computing
- Enterprise Server
Key Features

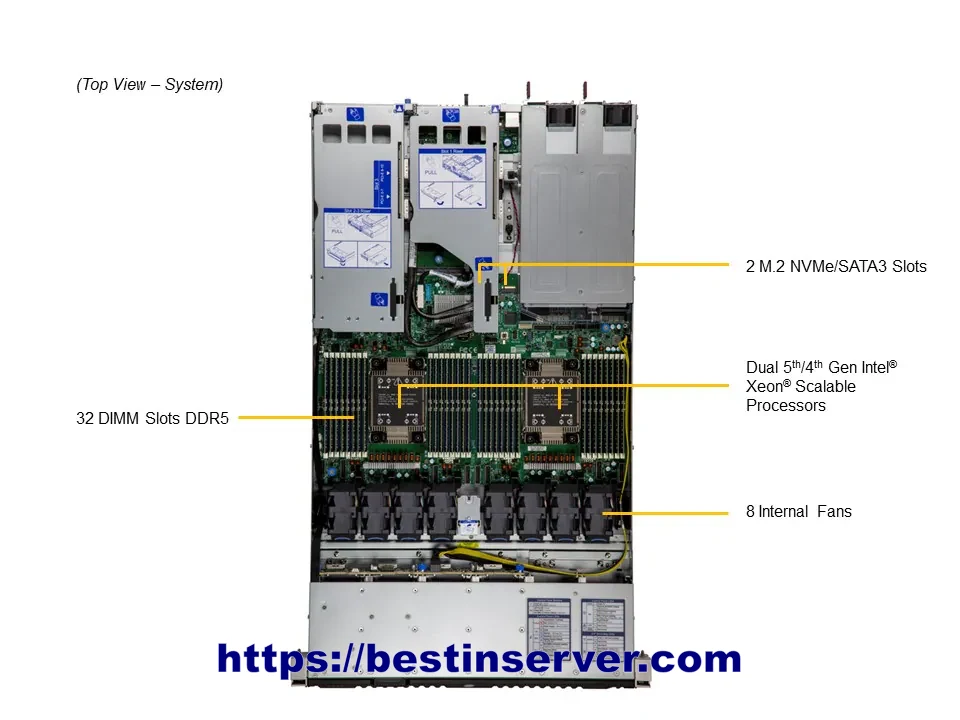

- Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
- 32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600
- 3 PCIe 5.0 x16 slots with support for GPU/Accelerator cards
- Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
-
- 8x 2.5″ hot-swap NVMe/SATA/SAS drive bays;
- Optional 4x 2.5″ hot-swap NVMe/SAS/SATA drive bays;
- 2x internal M.2 NVMe/SATA drive slots;
- Optional RAID support via storage add-on card
- 8 heavy duty hot-swap fans with optimal fan speed control
For Pricing, Contact Us
Related products
X11SPH-nCTF
For Pricing, Contact Us
Key Features
- 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, , Single Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP
- Intel® C622 chipset
- Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots
-
- Expansion slots:
- 1 PCIe 3.0 x16 (x16 || x8),
- 1 PCIe 3.0 x8 (x0 || x8),
- 1 PCIe 3.0 x8,
- 1 PCIe 3.0 x4 (in x8)
- 2x Port NVMe PCIe 3.0 x4 via OCuLink
-
- M.2 NGFF connector
- M.2 Interface: PCIe 3.0 x4 and SATA
- Form Factor: 2280
- Key: M-Key
- 8 SAS3 (12Gbps) via Broadcom® 3008; RAID 0, 1, 10
- 2 10GbE LAN ports
- 10 SATA3 (6Gbps) via C622
- 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 8 USB 2.0 (2 rear, 6 via headers)
X11SPM-TF
For Pricing, Contact Us
Key Features
- 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, , Single Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 165W TDP
- Intel® C622 chipset
-
- Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MHz, in 6 DIMM slots;
- Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only)
- Expansion slots: 2 PCIe 3.0 x16, 1 PCIe 3.0 x8 (in x8)
-
- M.2 NGFF connector
- M.2 Interface: PCIe 3.0 x4
- Form Factor: 2242, 2280
- Key: M-Key
- 2 10GbE LAN ports
- 12 SATA3 (6Gbps) via C622
- Supports 12V DC power input
- 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)
- I/O: 1 VGA, 2 COM, TPM header
X11SPM-TPF
For Pricing, Contact Us
Key Features
- 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, , Single Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 165W TDP
- Intel® C622 chipset
-
- Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MHz, in 6 DIMM slots;
- Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only)
- Expansion slots: 2 PCIe 3.0 x16, 1 PCIe 3.0 x8 (in x8)
-
- M.2 NGFF connector
- M.2 Interface: PCIe 3.0 x4
- Form Factor: 2242, 2280
- Key: M-Key
- 2 10G SFP+
- 12 SATA3 (6Gbps) via C622
- Supports 12V DC power input
- 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)
- I/O: 1 VGA, 2 COM, 1 TPM header
X11SSH-F
For Pricing, Contact Us
Key Features
-
- Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series,
- Intel® Celeron® and Intel® Pentium®
- Intel® C236 chipset
- Support Intel® VHD with selected CPU
- Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
-
- Expansion slots:
- 1 PCIe 3.0 x8 (in x16),
- 1 PCIe 3.0 x8,
- 1 PCIe 3.0 x4 (in x8)
-
- M.2 NGFF connector
- M.2 Interface: PCIe 3.0 x2
- Form Factor: 2280
- Key: M-Key
- Dual GbE LAN with Intel® i210-AT
- 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
- I/O: 1 VGA, 2 COM, TPM header
- 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))
X11SSi-LN4F
For Pricing, Contact Us
Key Features
-
- Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series,
- Intel® Celeron® and Intel® Pentium®
- Intel® C236 chipset
- Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
-
- Expansion slots:
- 1 PCIe 3.0 x8 (in x16),
- 1 PCIe 3.0 x8,
- 1 PCIe 3.0 x4 (in x8)
-
- M.2 NGFF connector
- M.2 Interface: PCIe 3.0 x4 and SATA
- Form Factor: 2242, 2260, 2280, 22110
- Key: M-Key
- 6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
- Quad GbE LAN with Intel® i210-AT
- I/O: 1 VGA, 2 COM, TPM header
- 2 SuperDOM with built-in power
- 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))
| Weight | 22.2 kg |
|---|---|
| Dimensions | 103.1 × 60.4 × 20.5 cm |
| Supermicro |
TEST TEST TEST 222 |
| 1U |
